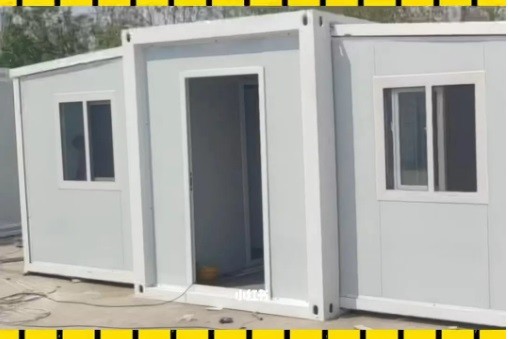

| (20)Double wing expansion configuration parameters | ||||
| Box | Outer Dimensions（L*W*h） | 5900*2200*2480mm | ||
| Size after expansion（L*W*H） | 5900mm*6300mm*2480mm | |||
| Index | Thermal insulation performance | In=0.048W/m · K fire performance | wind-resistant performance | 0.60kN/m² |
| Sound insulation performance | Sound insulation ≥ 30dB | Fire performance | Leave A | |
| Waterproof performance | Organized drainage, with a precipitation of 16mm/min and no leakage. | Seismic performance | Leave 8 | |
| Ground live load | 2.0kN/m² | roof live load | 0.9kN/W² | |
| Structure | Main frame |
Ground main beam: 80mm * 100mm square steel, 2.5mm thick galvanized beam; Ground secondary beam: specification 60 * 40 * 2.0mm thick galvanized square tube; Column: specification 210 * 150mm, galvanized 2.5mm thick; Roof main beam: 80mm * 100mm square steel, galvanized 2.5mm thick Roof secondary beam 40 * 40 * 1.5mm thick * 7 galvanized square pipes or U-shaped steel, 20 * 40 * 1.5 square pipes * 2 pieces |
||
| Side wing frame |
P80 * 2.0mm special pipe/P65 * 2.0mm special pipe/L type special galvanized steel plate, thickness 2.0mm 50 * 70 * 2.0mm rectangular tube/L25 * 25 * 1.0 angle steel |
|||
| Surface Treatment | Electrostatic spraying plastic powder baking paint ≥ 80 Hm | |||
| Wallboard | Flame retardant benzene plate | Color steel EPS composite board with a thickness of 75mm and a width of 950mm, color steel plate with a thickness of 0.3mm and a color of white gray. It is a pure flat and non embossed insulation board inside and outside, with a unit weight of 12kg/m ³ Flame retardant. | ||
| Roof covering | Roof slab | 50 thick EPS composite plate, with a steel plate thickness of 0.3mm. Corrugated board at the top, secondary waterproof, thickness 0.4mm | ||
| Insulation layer | EPS thickness 50mm, unit weight 14kg/m ³， The combustion performance is Class A non combustible | |||
| suspended ceiling | 190 type compression buckle | |||
| Ground | Structural slab | The main floor is made of glass magnesium board, with a thickness of 18mm; 18mm wooden plywood for both sides of the floor | ||
| Plastic floor slab | PVC floor leather, thickness 2.0mm | |||
| Door | Entrance door |
Broken bridge aluminum split door/KFC aluminum alloy split door/aluminum magnesium alloy flat open door/aluminum magnesium alloy push pull, size ≥ W1900mm × H2280mm, Tempered glass. (Alternative one) |
||
| Interior Door | W780xH2050 aluminum magnesium alloy door | |||
| Window | Outer window | Broken bridge aluminum casement window/plastic steel casement window/aluminum magnesium alloy track sliding window, size: W930mm × H930mm (alternative one, quantity can be customized) | ||
| Electrical | lamp | LED circular ceiling light 15W/set. Toilet 12W | ||
| Socket | Optional European Standard, American Standard, Austrian Standard, and National Standard | |||
| Switch | single switch × 3, double open, single open | |||
| Distribution box | Concealed distribution box × 1. (European standard alternative) | |||
| Air Switch | Optional European Standard, American Standard, Austrian Standard, and National Standard | |||
| CEE Industrial Plug | 220V，50Hz，3P32A×1. | |||
| Wiring | Entry line: 3 * 6 square meters, air conditioning socket: 3 * 4 square meters, ordinary socket: 3 * 2.5 square meters, lighting: 2 * 1.5 square meters. | |||
| Waterproof | D-shaped adhesive strips for each active joint; Butyl waterproof tape | |||
| Integrated bathroom | Toilet, shower, sink, ventilation window, water supply and drainage fittings (optional: empty box not included) | |||
| Wet and dry separation toilet | Sliding | |||
